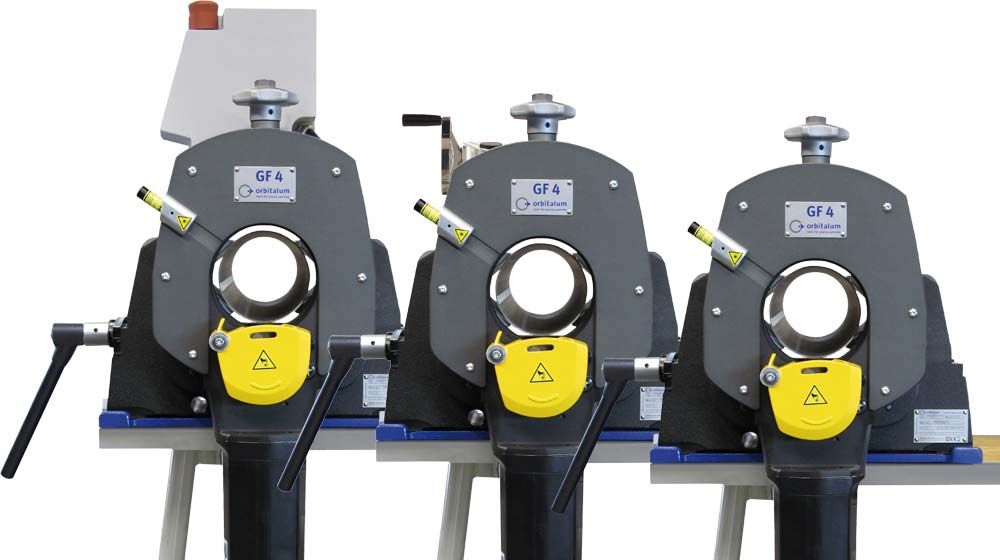

GF 4 (AVM/MVM)
Cutting and Bevelling Machines for precise cutting of tubes and pipes in just seconds. For more than 40 years, construction companies rely on the standard set by Orbitalum in the industrial prefabrication of pipeline systems.
Request a Quote
Key Features
Right-Angled, Burr-Free Cutting
Cold machining process ensures precise, clean cuts without deformation.
Deformation-Free Clamping
Multi-point clamping system for both thin and thick-walled pipes.
Optimal Weld Preparation
Perfect preparation for automated welding processes.
Robust Design
Powerful drive with unique, automatically guided plunging process.
Fast Tool Change
Quick adjustment of tube dimensions and cutting speed regulation.
Planetary Cutting
Stationary tube with rotating tool - increased safety and efficiency.
Technical Specifications
Tube OD
12 - 120 mm
0.472" - 4.724"
Tube ID
4 - 118 mm
0.157" - 4.656"
Wall Thickness
1 - 9 mm
0.039" - 0.354" (depending on material)
Feeding Versions
Automatic Feed Module
The intelligent control of the AVM continuously monitors the feed force depending on the required power. After completion of the cutting process, the AVM switches off automatically. Unintentional start-up is prevented by a restart interlock.
- Intelligent power monitoring
- Automatic shut-off after completion
- Restart interlock for safety
Manual Feed Module
The additional module on the machine facilitates the processing of pipes by means of a manually operated handwheel. This guides the turning body around the pipe in a user-friendly manner with little effort and constant feed.
- User-friendly handwheel operation
- Constant feed with minimal effort
- Cost-effective solution
Additional Advantages
Optimized tool engagement at only one point of the tube at a time
Optimized speed range (40-215 rpm), ideal for cutting high-performance materials (Hastelloy®, P91, etc.)
Ergonomically optimized motor handle for safer operator position
Cutting process completed in seconds
Chamfering of tube ends parallel or separately to the cutting process
Increased productivity and tool life
More corrosion protection due to stainless steel jaw attachments (included)
Cable with plug connection and quick release coupling for easy replacement
Compatible Materials
All high-alloy, non-alloy and low-alloy steels, aluminum, copper, brass, annealed cast iron pipe, general structural steel, black and galvanized steel pipe, and plastic can be processed with wall thickness of 2 to 10 mm (0.079" - 0.394"), depending on the material.
