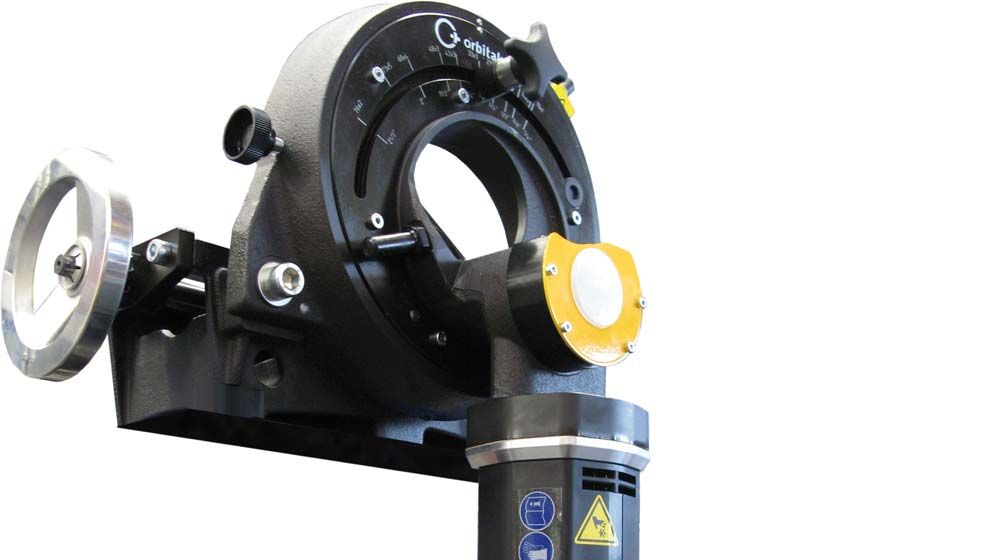

GFX 3.0
Pipe Cutting & Beveling Machine
The ideal solution for cutting of thin-walled tubes. Rugged design for a long product life makes the saws especially economical. Long tool lives increase productivity.
Key Features
Right-Angled & Burr-Free
Cold machining process ensures precise, right-angled cuts without burrs or deformation
Deformation-Free Clamping
Special clamping system works even with thin-walled tubes without causing deformation
Lightweight Design
Good handling and portability due to compact size and low weight
Chamfering Capability
Chamfer tube ends parallel or separately to the cutting process for optimal weld preparation
Low Maintenance
Easy to service with environmentally friendly operation and long service life
Pipe Bend Cutting
Additional saw blade holder enables cutting out pipe bends efficiently
Advanced Technology
The cutting point on the pipe can be conveniently marked by line laser. This characteristic feature of ORBITALUM pipe saws ensures precise positioning every time.
- Precise cut positioning
- Reduces setup time
- Improves accuracy
Equipped with overload protection and ergonomic handles. Available in multiple voltage versions to suit your needs.
- 230 V, 50/60 Hz option
- 120 V, 50/60 Hz option
- Overload protection included
- Quick-release coupling for cable replacement
Technical Specifications
| Tube OD (Outer Diameter) | 6.00 - 78.00 mm 0.236 - 3.071 inch |
| Tube ID (Inner Diameter) | 0.00 - 76.20 mm 0.000 - 3.000 inch |
| Wall Thickness | 0.80 - 7.00 mm 0.031 - 0.275 inch (depending on material) |
| Voltage Options | 230 V / 120 V, 50/60 Hz |
Application Areas
The GFX 3.0 is ideal for various industries requiring precision pipe cutting and beveling:
- Food & Beverage Industry
- Pharmaceutical Industry
- Chemical Industry
- Thin-walled Stainless Steel Pipes
- Pressfitting Applications
- Automated Welding Preparation
Why Choose GFX 3.0?
Ready to Experience the GFX 3.0?
Contact our team to discuss your pipe cutting needs and get a customized solution for your application.
