High-Speed Performance

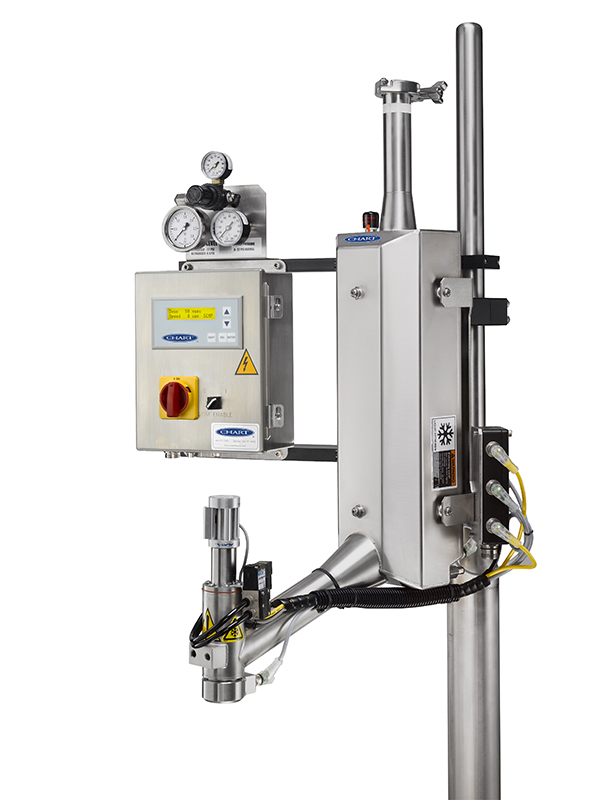

UltraDoser®
High-speed precision nitrogen dosing system for demanding production environments up to 2000+ cpm
Up to 2000
Containers/Minute
Key Features
High-Speed Operation
Discrete dosing up to 2000 containers per minute
Advanced PLC Control
Sophisticated programming for precise operation
Vacuum Insulated
Efficient LN2 consumption with advanced insulation
Compact Design
Installation in limited production space
Advanced Technology
RemoteDose™ Capable
Remote access and control for enhanced efficiency and reduced downtime
MicroDose™ Technology
Consistent and accurate dosing across all line speeds
SoftDose™ Compatible
Hot fill, powder, and granular applications supported

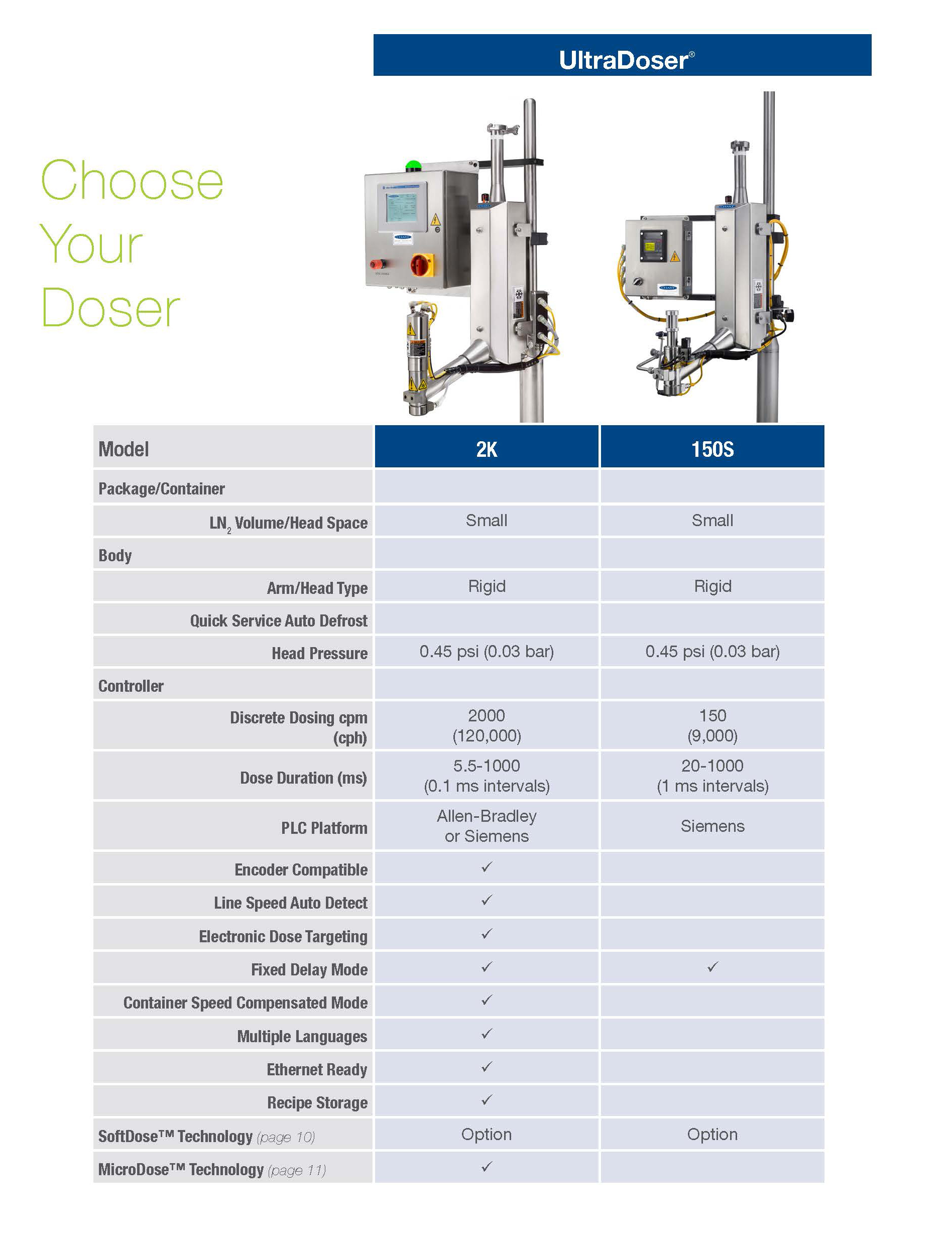

Technical Specifications
2K Controller
Dosing Speed2000 cpm (120,000 cph)
Dose Duration5.5-1000 ms (0.1 ms intervals)
PLC PlatformAllen-Bradley or Siemens
Head Pressure0.45 psi (0.03 bar)
Encoder CompatibleYes
150S Controller
Dosing Speed150 cpm (9,000 cph)
Dose Duration20-1000 ms (1 ms intervals)
PLC PlatformSiemens
Head Pressure0.45 psi (0.03 bar)
Fixed Delay ModeYes
Applications & Benefits
Key Applications
- High-speed beverage production lines
- Wine bottling (85% headspace oxygen reduction)
- Food and beverage preservation
- Medium to high-volume production facilities
Key Benefits
- Reduced PET container weight
- Increased container rigidity
- Elimination of package paneling
- Extended product shelf life
Maximize Your Production Efficiency
Learn how the UltraDoser can enhance your high-speed production line with precision nitrogen dosing
